Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4.6X 400MM UV Black Nylon Cable Wire Ties - Self Locking Type | Material Fireproof: | 94V-2 |
|---|---|---|---|
| Color: | White,Black Or Others | Usage: | Fix,Fastener |
| Feature: | Insulate | Width: | 7.2mm |
| Highlight: | nylon zip ties,nylon wire ties |
||

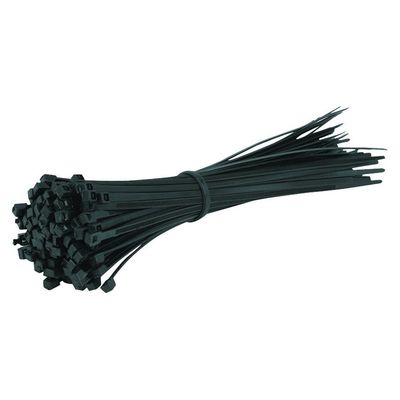

4.6X 400MM UV Black Nylon Cable Wire Ties - Self Locking Type
Description
Materia:
Nylon 66, 94V-2, certificated by UL. Acid and corrode resisting, insulate, not to age.
Operating temperature:
-35°C to 85°C.
Color:
With unique color matching technology,we are experienced at manufacturing colorful cable ties.
The common colors are as below:
Blue Green Purple Yellow Red Pink Brown
Other colors can also be made as your requests.
| Item No. | Length | Max.Bundle Dia. (mm) |
Width (mm) |
Tensile Strength (kgs) |
Packing (pcs) |
|
| mm | inch | |||||
| JH-5×200 | 200 | 8" | 50 | 4.8 | 22 | 100 |
| JH-7.6×100 | 100 | 4" | 22 | 7 | 25 | |
| JH-7.6×150 | 150 | 6" | 35 | 7.2 | ||
| JH-7.6×200 | 200 | 8" | 50 | 7.2 | ||
| JH-7.6×250 | 250 | 10" | 65 | 7.2 | ||
| JH-7.6×300 | 300 | 12" | 80 | 7.4 | ||
| JH-7.6×350 | 350 | 14" | 90 | 7.4 | ||
| JH-7.6×400 | 400 | 16" | 105 | 7.4 | ||
| JH-7.6×450 | 450 | 18" | 118 | 7.4 | ||
The Self Locking Nylon Cable Ties Size as Below
| ITEM NO. | LENGTH(L) | WIDTH(W) | BUNDLE DIAMETER(E) | TENSILE STRENGTH | |||
| INCH | MM | MM | MM | LBS | KGS | ||
| JH-2.5*60 | 2.4" | 60 | 2.5 | 2--11 | 18 | 8 | |
| JH- 2.5*80 | 3.2" | 80 | 2--16 | ||||
| JH- 2.5*100 | 4.0" | 100 | 2--22 | ||||
| JH- 2.5*120 | 4.7" | 120 | 2-30 | ||||
| JH- 2.5*150 | 6.0" | 150 | 2-35 | ||||
| JH- 2.5*160 | 6.3" | 160 | 2-40 | ||||
| JH- 2.5*200 | 8.0" | 200 | 3-50 | ||||
| JH- 3.6*140 | 5.5" | 140 | 3.6 | 3-33 | 40 | 18 | |
| JH- 3.6*150 | 6.0" | 150 | 3-35 | ||||
| JH- 3.6*250 | 10.0" | 250 | 3-65 | ||||
| JH- 3.6*280 | 11.0" | 280 | 3-70 | ||||
| JH- 3.6*300 | 12.0" | 300 | 3-80 | ||||
| JH- 3.6*370 | 14.6" | 370 | 3-105 | ||||
| JH- 4.8*120 | 4.7" | 120 | 4.8 | 3--30 | 50 | 22 | |
| JH- 4.8*160 | 6.3" | 160 | 3-40 | ||||
| JH- 4.8*180 | 7.1" | 180 | 3-42 | ||||
| JH- 4.8*190 | 7.5" | 190 | 3-46 | ||||
| JH- 4.8*200 | 8.0" | 200 | 3-50 | ||||
| JH- 4.8*250 | 10.0" | 250 | 3-65 | ||||
| JH- 4.8*280 | 11.0" | 280 | 3-70 | ||||
| JH- 4.8*300 | 12.0" | 300 | 3-80 | ||||
| JH- 4.8*350 | 14.0" | 350 | 3-90 | ||||
| JH- 4.8*360 | 14.2" | 360 | 3-94 | ||||
| JH- 4.8*370 | 14.6" | 370 | 3-98 | ||||
| JH- 4.8*380 | 15.0" | 380 | 3-102 | ||||
| JH- 4.8*400 | 16.0" | 400 | 3-105 | ||||
| JH- 4.8*430 | 16.9" | 430 | 3-120 | ||||
| JH- 4.8*450 | 17.7" | 450 | 3-130 | ||||
| JH- 4.8*500 | 19.7" | 500 | 3-150 | ||||
| JH- 7.2*150 | 6.0" | 150 | 7.2 | 3-35 | 120 | 55 | |
| JH- 7.2*200 | 8.0" | 200 | 3-50 | ||||
| JH- 7.2*250 | 10.0" | 250 | 4-65 | ||||
| JH- 7.2*280 | 11.0" | 280 | 4-78 | ||||
| JH- 7.2*300 | 12.0" | 300 | 4-80 | ||||
| JH- 7.2*350 | 14.0" | 350 | 4-90 | ||||
| JH- 7.2*370 | 14.6" | 370 | 4-98 | ||||
| JH- 7.2*380 | 15.0" | 380 | 4-100 | ||||
| JH- 7.2*400 | 16.0" | 400 | 4-105 | ||||
| JH- 7.2*450 | 18.0" | 450 | 4-110 | ||||
| JH- 7.2*500 | 20.0" | 500 | 4-150 | ||||
| JH- 7.2*530 | 20.9" | 530 | 4-160 | ||||
| JH- 7.2*550 | 21.6" | 550 | 4-165 | ||||
| JH- 9.0*400 | 16.0" | 400 | 9.6 | 8-105 | 175 | 80 | |
| JH- 9.0*450 | 18.0" | 450 | 8-118 | ||||
| JH- 9.0*500 | 20.0" | 500 | 1-150 | ||||
| JH- 9.0*550 | 21.6" | 550 | 8-160 | ||||
| JH- 9.0*600 | 23.6" | 600 | 8-170 | ||||
| JH- 9.0*650 | 25.6" | 650 | 8-185 | ||||
| JH- 9.0*720 | 28.3" | 720 | 10-195 | ||||
| JH- 9.0*800 | 31.5" | 800 | 10-230 | ||||
| JH- 9.0*900 | 35.5" | 900 | 10-265 | ||||
| JH- 9.0*1000 | 29.4" | 1000 | 10-300 | ||||
| JH- 9.0*1100 | 43.3" | 1100 | 10-335 | ||||
| JH- 9.0*1200 | 47.2" | 1200 | 10-370 | ||||
| JH- 12**650 | 25.6" | 650 | 12 | 14-185 | 250 | 114 | |
| JH- 12*900 | 25.5" | 900 | 14-265 | ||||
