Self Lock 12 X 490mm Stainless Steel Ladder Cable Ties UL SGS CE ISO9001

China Self Lock 12 X 490mm Stainless Steel Ladder Cable Ties UL SGS CE ISO9001 supplier
Self Lock 12 X 490mm Stainless Steel Ladder Cable Ties UL SGS CE ISO9001 supplier Self Lock 12 X 490mm Stainless Steel Ladder Cable Ties UL SGS CE ISO9001 supplier

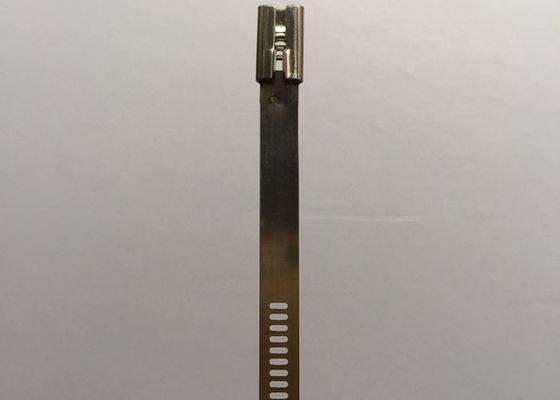

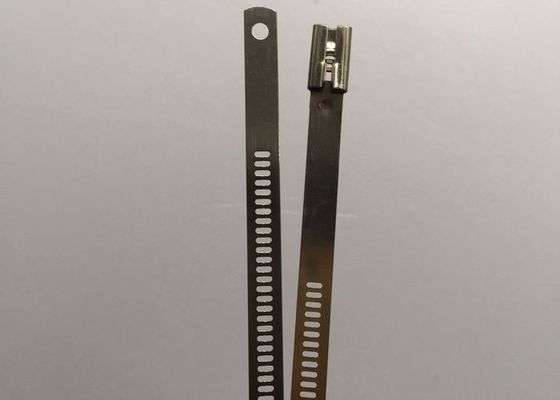

Large Image :  Self Lock 12 X 490mm Stainless Steel Ladder Cable Ties UL SGS CE ISO9001

Product Details:

Place of Origin: China
Brand Name: JIUHONG
Certification: UL,SGS,CE,ISO9001
Model Number: JHJD

Payment & Shipping Terms:

Minimum Order Quantity: 1000-10000pcs
Price: Negotiable
Packaging Details: 100pcs/polybag or 50pcs/polybag
Delivery Time: 2-7workdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000000pcs/month
Contact Now
Detailed Product Description
Product Name: 12 X 490mm Stainless Steel Ladder Cable Ties - Multi Lock Type Color: Naked Or Black
Applications: Telecommunication,Electricity,Shipbuilding,Oil&gas Industry Sample: Few Free Sample
Width: 4.6mm,7mm And 12mm Type: Self Locking Ladder Ties
Highlight:

ladder type stainless steel cable ties

,

metal reinforced zip ties



12 x 490mm Stainless Steel Ladder Cable Ties - Multi Lock Type



Description

  • Unique multi-locking mechanism design on the ladder strip can be applied without crimping tools Self-locking for fast, easy application
  • Extended ladder slot provides larger bundle diameter with the same length of tie.
  • Uncoated tie for high temperature applications.
  • Coated surface provides excellent chemical and weathering resistance,superior insulation and protection of cables.
  • Material: #304 and #316 Stainless Steel.


Applications


Ideal for used in Petrochemical and food processing industries, power stations, mining, shipbuilding, offshore and other aggressive environments.


Working Temp.: -80℃ to 538℃
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant.







Self Lock 12 X 490mm Stainless Steel Ladder Cable Ties UL SGS CE ISO9001



Part No. Approx.Length
mm(inch)		 Approx.Width
mm(inch)		 Thickness
mm		 Max. bundle Dia.
mm(inch)		 Min. loop
tensile strength
mm(inch)		 Pcs/bag
JHJD-7 x 150 150(5.9) 7(0.276) 0.25 33(1.3) 1120(252) 100
JHJD-7 x 225 225(8.86) 57(2.2)
JHJD-7 x 300 300(11.8) 81(3.2)
JHJD-7 x 335 335(13.2) 92(3.6)
JHJD-7 x 400 400(15.7) 113(4.4)
JHJD-7 x 450 450(17.7) 129(5.1)
JHJD-7 x 490 490(19.3) 141(5.6)
JHJD-7 x 550 550(21.7) 161(6.3)
JHJD-7 x 600 600(23.6) 176(6.9)
JHJD-7 x 650 650(25.6) 192(7.6)
JHJD-7 x 700 700(27.6) 208(8.2)
JHJD-7 x 750 750(29.5) 224(8.8)
JHJD-7 x 800 800(31.5) 240(9.4)
JHJD-12 x 150 150(5.9) 12(0.472) 0.25 33(1.3) 1800(405) 100
JHJD-12 x 225 225(8.86) 57(2.2)
JHJD-12 x 300 300(11.8) 81(3.2)
JHJD-12 x 335 335(13.2) 92(3.6)
JHJD-12 x 400 400(15.7) 113(4.4)
JHJD-12 x 450 450(17.7) 129(5.1)
JHJD-12 x 490 490(19.3) 141(5.6)
JHJD-12 x 550 550(21.7) 161(6.3)
JHJD-12 x 600 600(23.6) 176(6.9)
JHJD-12 x 650 650(25.6) 192(7.6)
JHJD-12 x 700 700(27.6) 208(8.2)
JHJD-12 x 750 750(29.5) 224(8.8)
JHJD-12 x 800 800(31.5) 240(9.4)





Tag:

ladder type stainless steel cable ties,

metal reinforced zip ties
